Gravity Conveyor Roller Series GR-SM-1200
Sheet Metal Bearing with Metal Housing {Light Duty}These kinds of rollers are especially used with gravity conveyors exposed under light weight unit handling. It can be used in manufacturing plant, assembly line and food possessing line. Or may be used with any other suitable application.
| General Technical specifications | |
|---|---|
| Model no. | GR-SM-1200 |
| Max. Load capacity | 1200N |
| Max conveyor speed | 0.9 mtr/s |
| Tube Material used for construction | MS, Aluminum, Stainless steel, MS with PVC sleeved |
| Shaft | Steel, Zinc –plated, MS, Stainless steel |
| Bearing | Sheet Metal Bering, dry run |
| Advantage | Dry running, long life, lowest friction, minimum slope. |
Manufactured with uncaged sheet metal bearing & hexagonal shaft, which makes the assembly & dismantling of the roller is very easy. No support bracket or slot on the stringer is required.
|
ROLLER SIZE - GR-SM-1200 |
||||||
|
Tube Metal |
Tube/thickness {mm} |
Shaft{mm} |
Roller length { mm } |
Load capacityin {N} |
||
|
|
|
|
Min |
Max |
Min |
Ma |
|
Aluminium Light Duty |
25.4 X 2 |
6 |
100 |
1500 |
100N |
750N |
|
38.1 X 3 |
10, 12.7 |
|||||
|
50.8 X 3 |
12.7 A /F |
|||||
|
60.3 X 3 |
17 A/F |
|||||
|
63.5 x 3.0 |
17 A/F |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MS, SS, PVC Sleeved |

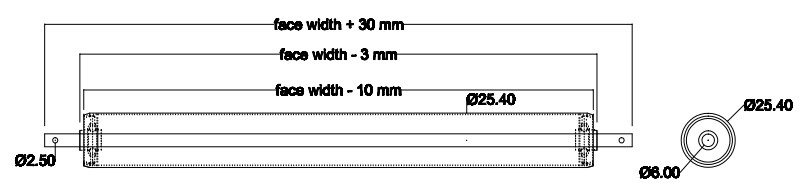

25.4 X 1.6 |
6 |
100 |
1500 |
100N |
1300N |
|

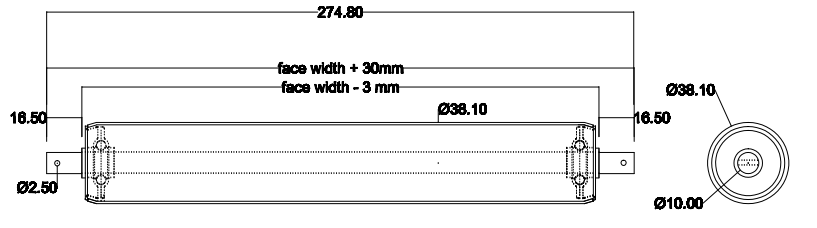

38.1 X 1.6 |
10 |
|||||
|

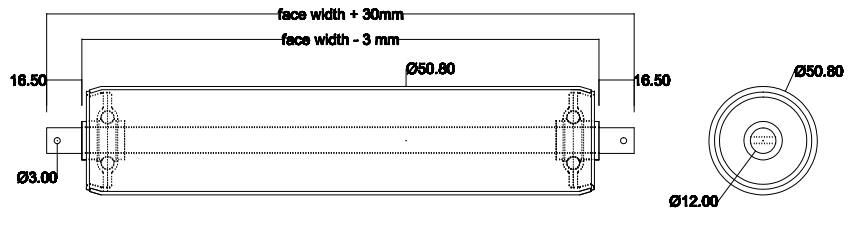

50.8 X 1.6 |
12 |
|||||
|

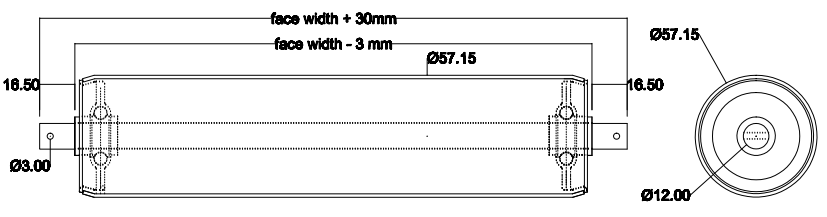

57.15 X 1.6 |
12 |
|||||
|

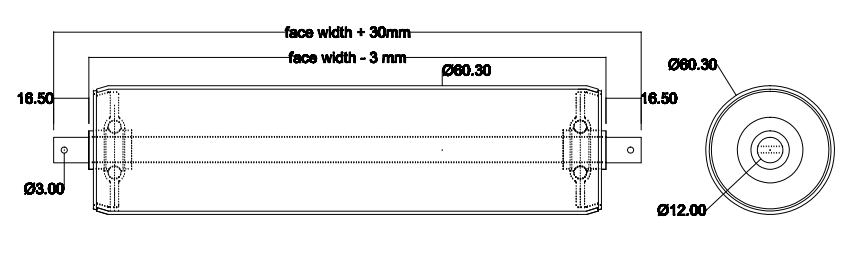

60.3 X 1.6 |
12 |
|||||
|
|
|
|
|
|
|
|
