Gravity Conveyor Roller Series GR-SM-1250
Sheet Metal Bearing with Metal Housing {Heavy Duty}These kinds of rollers are particularly used in gravity or push conveyors having needs of load below 1500N. It can be used in manufacturing plant, assembly line or food possessing line. Or any other suitable application s per requirement.
| General Technical specifications | |
|---|---|
| Model no. | GR-SM-125O |
| Max. Load capacity | 1500N |
| Max conveyor speed | 0.8m/s |
| Tube Material used for construction | MS, Aluminum, Stainless steel, MS with PVC sleeved |
| Shaft | Steel, Zinc –plated, MS, Stainless steel |
| Bearing | Sheet Metal Bering, dry run |
| Advantage | Dry running, long life, lowest friction, minimum slope. |
Manufactured with uncaged sheet metal bearings & hexagonal shaft, which makes the assembly & dismantling of the roller is very easy. No support bracket or slot on the stringer is required.
|
ROLLER SIZE - GR-SM-1250 |
||||||
|
Tube Metal |
Tube/thickness {mm} |
Shaft{mm} |
Tube length { mm } |
Load capacityin {N} |
||
|
|
|
|
Min |
Max |
Min |
Ma |
|
MS, SS, +PVC Sleeved |

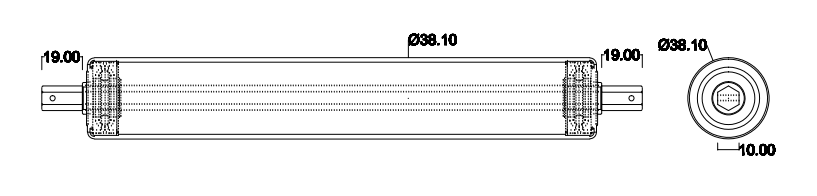

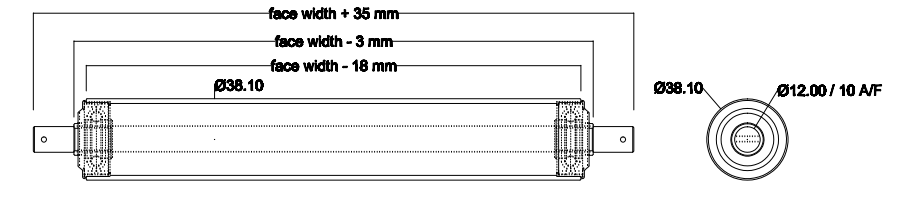

38.1 x 2.6 |
12, 12.7, 10A/F |
100 |
1800 |
100N |
1300N |
|

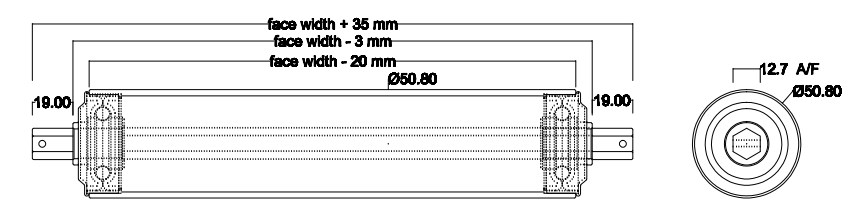

50.8 X 2.9 |
12.7 , A/F |
|||||
|

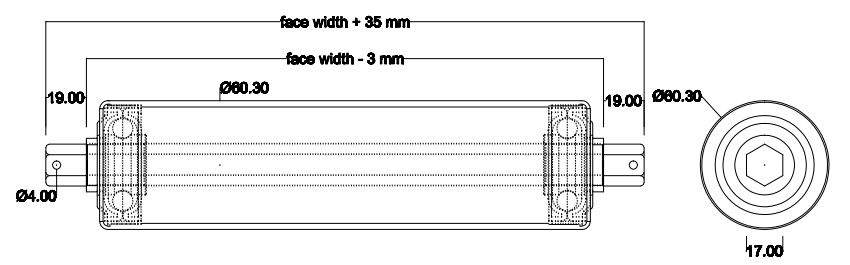

60.3 X 2.9 |
17A/F |
|||||
|

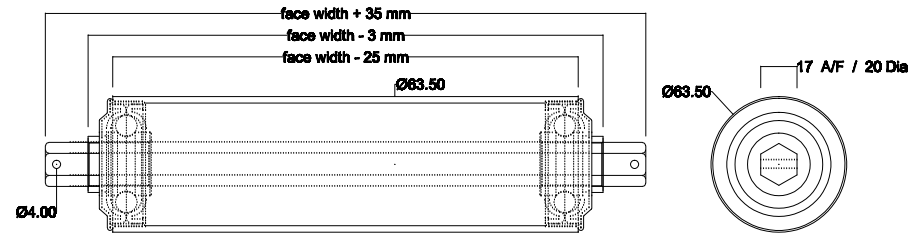

63.5 X 3.25 |
17 A/F |
|||||
|

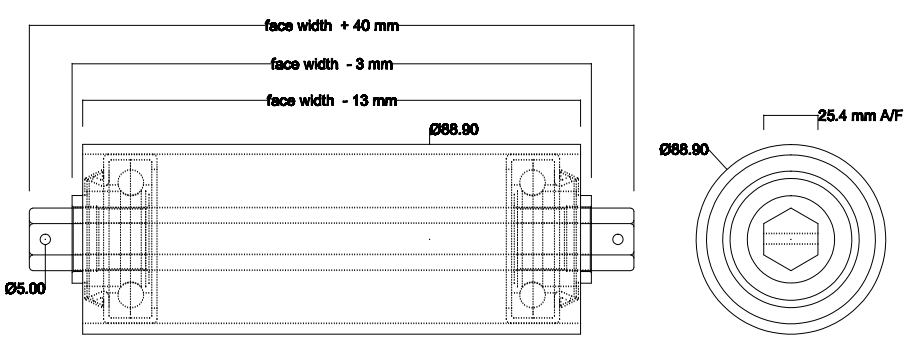

88.9 x 4.5 |
1" A/F |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MS, SS, +PVC Sleeved |
60.3 x 4.0 |
12.7 A/F |
100 |
1800 |
100N |
1500N |
|
60.3 X 2.9 |
17A/F |
|||||
|
88.9 X 4.5 |
1" A/F |
|||||
|
|
|
|
|
|
|
|
