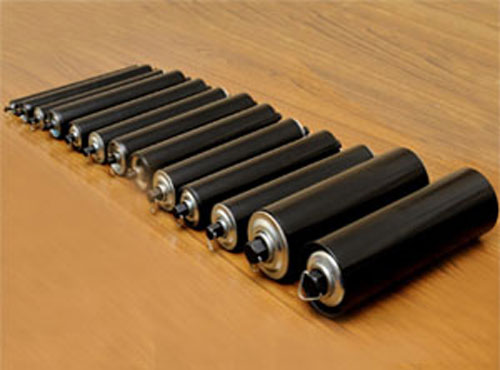

Gravity Roller Conveyor

Gravity Roller Conveyor are pioneers in the field of Gravity Roller Conveyor manufacturers with Uncaged Sheet Metal Bearings with Hexagonal Shaft & Hexagonal groove in the Bearing, which make the assembly & dismantling of the Roller very easy. No support bracket or slot on the stringer is required. Material moves smoothly with minimum slope.

We are the first to develop sheet bearings in India. The special advantages of this product is

SURFACE TREATMENT

  • DRY RUNNING
  • LONG LIFE
  • EASE IN ASSEMBLY
  • SMOOTH RUNNING
  • LOWEST FRICTION
  • MINIUM SLOPE

WE MANUFACTURE ALL TYPE OF GRAVITY ROLLER CONVEYORS

  • Rollers with precision Bearing & Sheet Metal Housing
  • Rollers with precision Bearing & solid Housing
  • Spring loaded Rollers
  • Hexagonal Shaft

Gravity Roller

Pipe Size

Shaft Size

Duty

1

25.4mm OD

6mm Æ

Light Duty

2

38.0mm OD

8mm Æ

Light Duty

3

38.0mm OD

10 AF / 12.7 Æ

Heavy Duty

4

50.8mm OD

11 AF

Light Duty

5

50.8mm OD

11 AF

Heavy Duty

6

57.0mm OD

11 AF / 12 Æ

Light Duty

7

60.3mm OD

17 AF

Heavy Duty

8

63.5mm OD

17 AF

Heavy Duty

9

88.9mm OD

25 AF

Heavy Duty

10

88.9mm OD

25 AF

Extra Heavy Duty

* ASK US TO SELECT YOUR ROLLERS BASED ON THE WEIGHT AND SIZE OF THE MATERIAL TO BE HANDLED

MATERIAL OF CONSTRUCTION

  • MILD STEEL
  • ALUMINIUM
  • STAINLESS STEEL
  • PVC
  • M.S WITH PVC SLEEVE
  • M.S. WITH P.U MOULDED

SURFACE TREATMENT

  • ANTI COROSSION TREATMENT
  • ZINC PLATED
  • BLACKENED
  • ANODISED

LOAD RATINGS

5 Kgs to 2000 Kgs

  • SLIDE FITTING HEXAGONAL SHAFT FOR EASY ASSEMBLY.
  • NO SLOT OR BRACKET ON STRUCTURE
  • SMOOTH RUNNING SHEET METAL BEARING REDUCES THE GRADIENT FOR GRAVITY APPLICATIONS. SAVING SPACE FOR LONGER CONVEYORS
  • MAKES IT VERY EASY TO HANDLE THE MATERIAL ON HORIZONTAL PLANE
  • IDEAL FOR MACHINING LINES, PACKING LINES, TYRE MOULDING PRESSES ETC.,
  • DRY RUNNING BEARING REQUIRES NO LUBRICATION
  • LONG LASTING

* AS PER SPECIFIC REQUIREMENT & LOAD RATING. WE MANUFACTURE ANY STANDARD SIZE & TYPE OF ROLLERS, WITH UNCAGED BEARINGS, HEXAGONAL OR ROUND SHAFT, SPRING LOADED, WITH PVC, PVC SLEEVE, M.S., S.S. AND ALUMINUM WITH ANTI CORROSION TREAEMTENT AND ZINC PLATING.

* ROLLERS FITTED WITH PRECISION BEARINGS, WITH SHEET METAL HOUSING, SOLID HOUSING AND WITH SPRING LOAD IS ALSO AVAILBALE.
